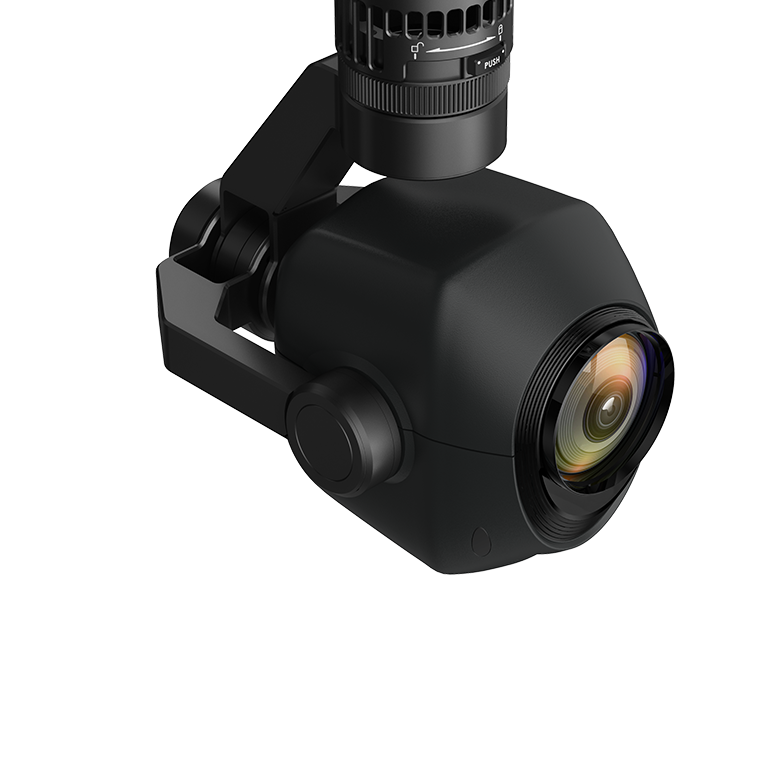

DL3 Infrared Camera

The high-sensitivity infrared camera breaks through the limitations of geographical location and light, and can capture accurate and clear thermal images anytime, anywhere,and reduce the risk of information latency.

Specifications:

  • Image resolution: uncooled focal plane, 640*480
  • Working band: 7~14 um
  • Spatial resolution: 0.34 mrad
  • Infrared lens focal length: 50mm
  • Optical focusing system: motorized/auto focus
  • Digital zoom: 2x, 4x, 8x, 16x
  • Focusing method: automatic/manual
  • Temperature measurement accuracy: ±2° or ±2%
  • Lens field of view: 12°*9°
  • Operating temperature range: -20°C ~ 50°C
  • Operating relative humidity: 10% ~ 95%, non-condensing
  • PTZ control range: Pitch: -90° ~ 0° Yaw: 0°~ 360°
  • Control angle accuracy: ±0.02°


Real-time video

Custom lenses and full-frame sensors complement each other, fully mobilizing every pixel on the sensor, allowing for wider-frame capture and recording more efficiently and quickly than traditional infrared cameras. Panoramic lens ensures sharpness and details of the image.



Full dynamic and accurate temperature measurement

The DL3 infrared camera provides more precise temperature measurement, analysis and recording functions. Clicking on the screen of the ground station will display the temperature of the area. At the same time, as the temperature of the detection area changes, the temperature on the ground station will be updated in real time to ensure that the inspectors can obtain the latest temperature data.



Real-time GPS location

The infrared camera can obtain its own real-time GPS position and store it in the video file, helping analysts to quickly and accurately identify the location of the video content when analyzing the infrared video and pictures later.
